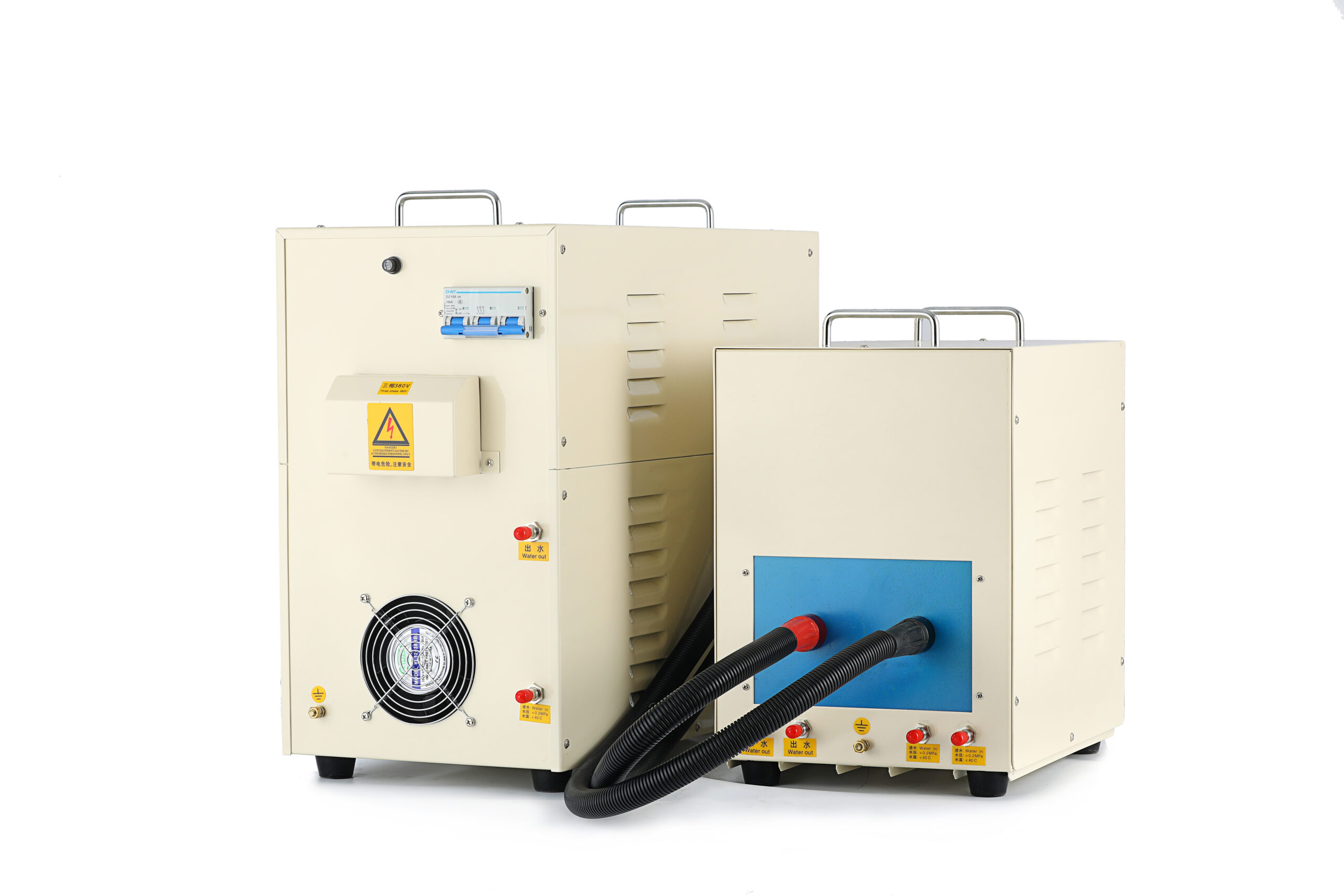

1. Input Voltage: 380V, 50/60HZ
2. Working Voltage: 342V-430V
3. Output Power: 45kW
4. Output Frequency: 30-100KHZ
5. Input Current: 45A
6. Size: 560*285*530mm ,360*275*425mm Weight: 37kg, 32kg
* Brazing * Hardening Tempering * Annealing Quenching
* Melting * Forging * Other heating treatment
HF induction heating machine model:
Features:
* Model: 15KW, 25KW-A, 25KW-AB, 35KW , 45KW, 60KW,
* IGBT Type
* Frequency: 30 ~ 100KHZ
* 24 Hour continuous work
* Voltage & current full display. Adjust heating, Holding time
* Easy to operate and more stable
* Design different type induction coil

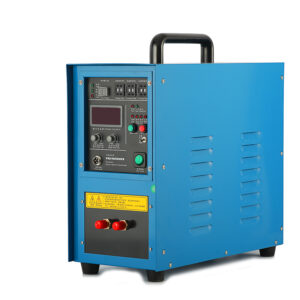

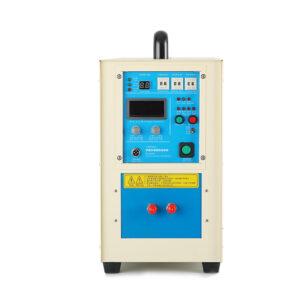

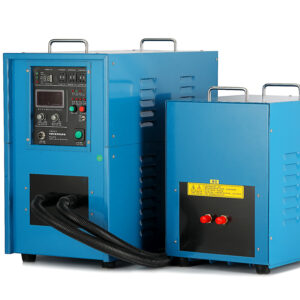

| Model | HD-15KW | HD-25KWA | HD-25KWAB | HD-35KW | HD-45KW | HD-65KW |
| Input Voltage | 220V 50/60HZ | 3-380V 50/60HZ | ||||
| Input Voltage | 37A | 28A | 28A | 33A | 45A | 75A |
| Output Power | 15KW | 25KW | 25KW | 35KW | 45KW | 65KW |
| Frequency | 30-100KHZ | |||||
| Cooling Water | 0.2mpa6L/min | 0.2mpa7L/min | 0.2mpa8L/min | 0.2mpa9L/min | ||
| Work voltage | 108V-245V | 342V-430V | ||||
| Weight | 27kg | 31kg | 39kg | 50kg | 69kg | 73kg |
| Size mm | 460*215*470 | 490*245*490 | 490*245*490 | 490*245*490 | 560*285*530 | 850*500*680 |
| 310*225*360 | 360*275*425 | 360*275*425 | 450*320*400 | |||
The System Include:
1. Induction Heating Power
2. Induction Transformer
3. Induction Coil
4. Water Cooling system (Chosen Part)
5. Manual and other part
